Database¶
In Aipress24, data is managed by a PostgreSQL relational database (with SQLite used for most tests). The object-relational mapping (ORM) layer uses SQLAlchemy 2.0 (modern Mapped[...] declarative style) together with Advanced-Alchemy (repositories, base classes, custom column types).
Schema¶

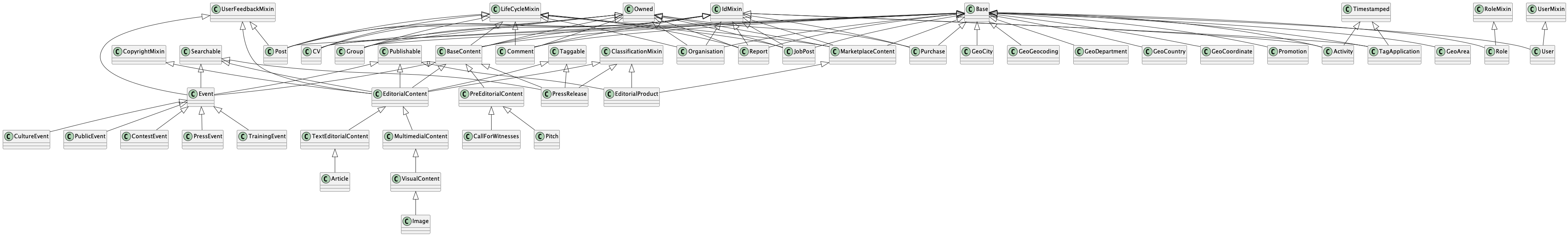

Simple¶

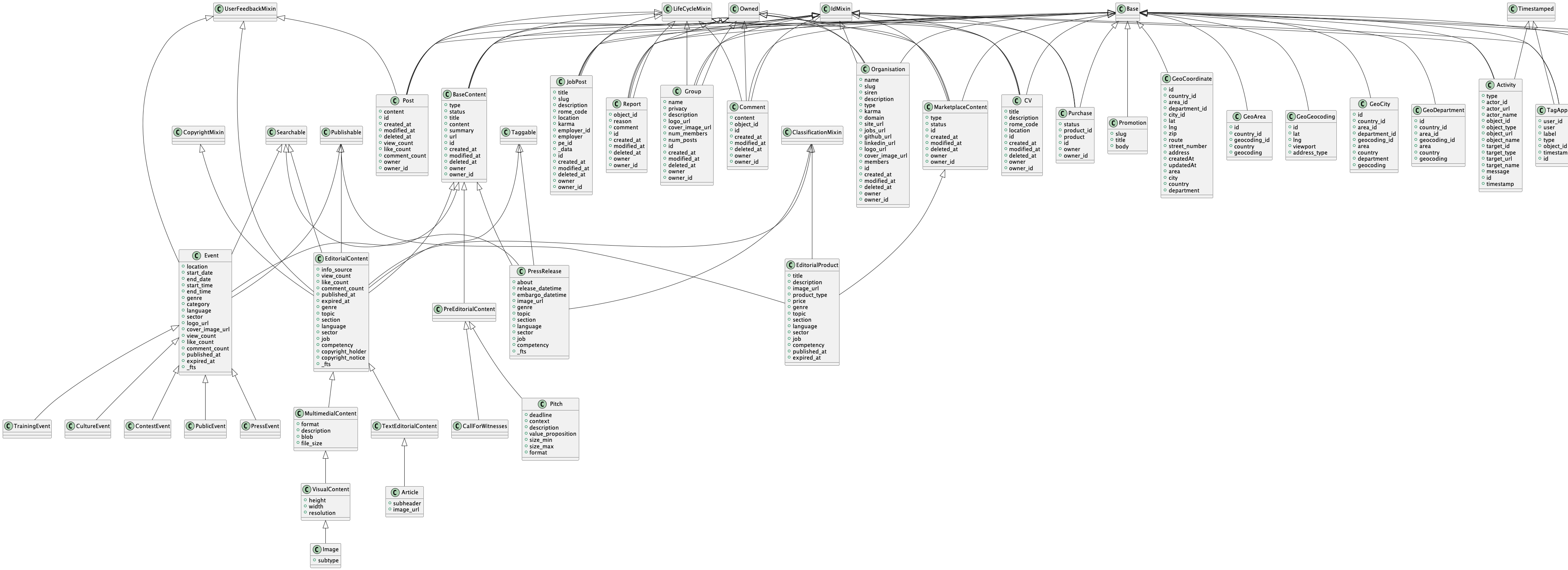

Detailed¶

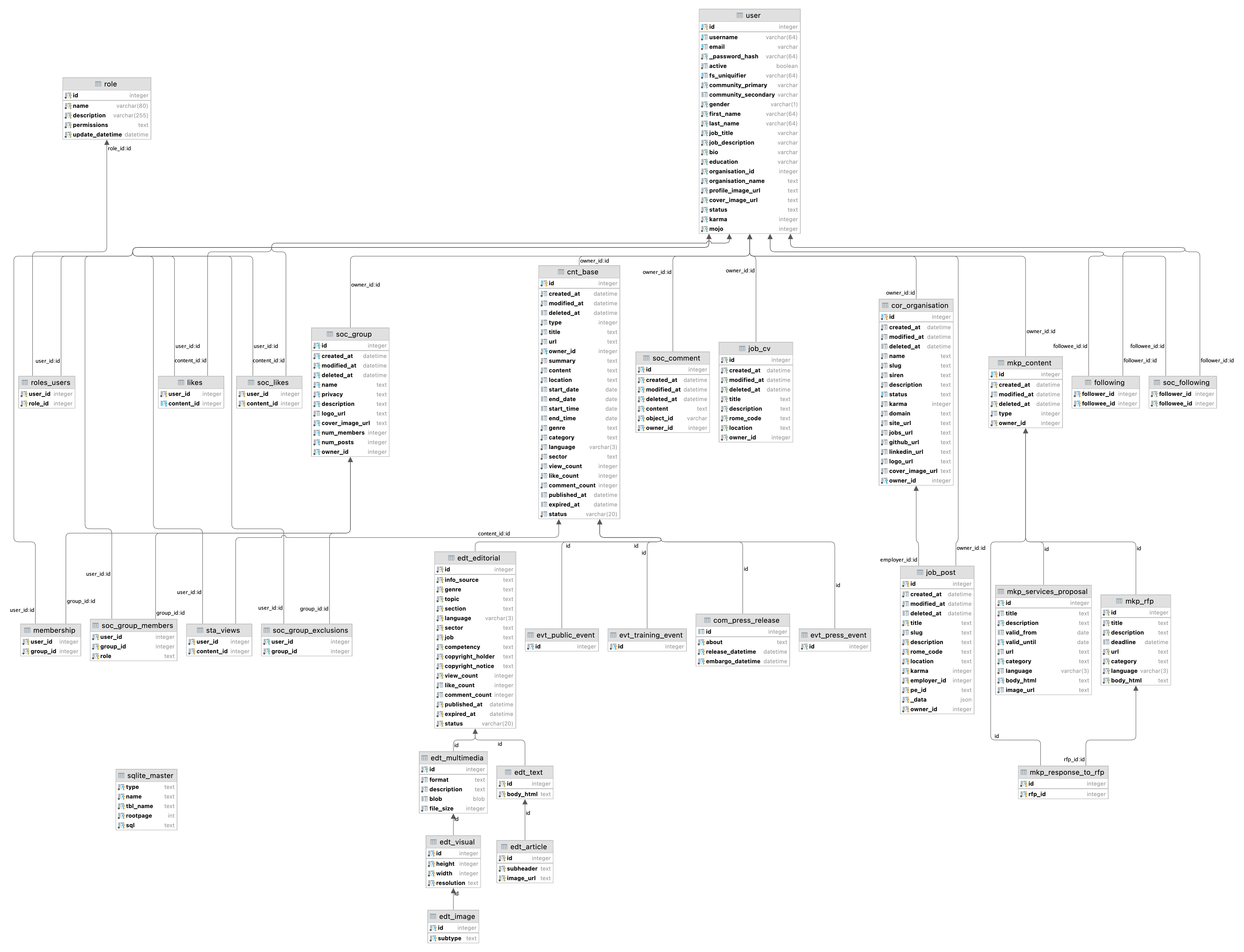

Alternative view:
Migrations¶
Schema migrations are handled with Alembic (via Flask-Migrate); migration scripts live in the migrations/ directory (alembic.ini, migrations/versions/). For a fresh development or test database, the schema can also be created directly from the models (db.create_all() / the bootstrap and fake-data commands) rather than replaying migrations.
Table prefixes¶
Tables are namespaced by a short prefix reflecting the owning domain. The prefixes actually in use are:
| Prefix | Domain |
|---|---|
adm_ |
admin |
aut_ |
authentication (users, roles…) |
bw_ |
Business Wall (activation, roles, partnerships, subscriptions, content, images) |
cms_ |
CMS / static pages |
cnt_ |
content |
crm_ |
CRM |
crp_ |
organisations (corporate) |
email_ |
|
evt_ |
events (public feed) |
evr_ |
Event’room |
frt_ |
front-end / UI state |
geo_ |
geo-coding |
inv_ |
invoicing |
job_ |
job board |
kyc_ |
registration / Know Your Customer |
mkp_ |
marketplace (missions, projects, jobs, products, applications) |
not_ |
notifications |
nrm_ |
newsroom (articles, sujets, commandes, avis d’enquête…) |
org_ |
organisation-related |
rep_ |
reputation |
ses_ |
sessions |
soc_ |
social graph (follows, likes) |
sta_ |
statistics / tracking |
str_ |
activity streams |
stripe_ |
Stripe objects (subscriptions, products, prices) |
tag_ |
tagging |
tax_ |
taxonomies / ontologies |
wire_ |
News feed posts |
web_ |
web pages |
zip_ |
postcodes / cities |
Tables with no prefix include blob (binary object storage metadata).
Note
This list is generated from the models’ __tablename__ declarations and evolves with the code — check src/app for the authoritative set.
